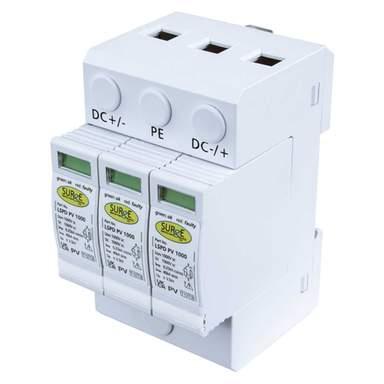

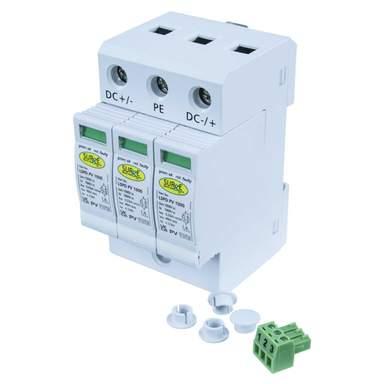

MCG 3 Module 1000V DC Type 2 T1 and 2 Lightning/Surge Device for PV Systems

Part Code: LSPDPV1000

  • Ideal for photovoltaic/solar systems
  • Designed for the protection of the DC side before the inverter
  • End of module life indication

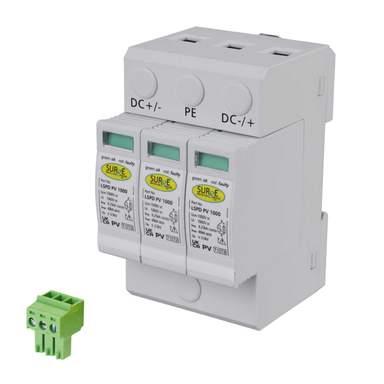

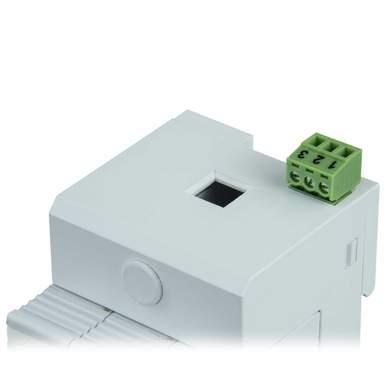

  • Remote signal contacts
  • Pluggable and replaceable modules
  • Mounted: DIN rail
  • Use 63A backup MCB [sold separately]
  • Cable size: 2.5mm² to 35mm²
  • Conforms to IEC 61643-1 and EN 61643-11
