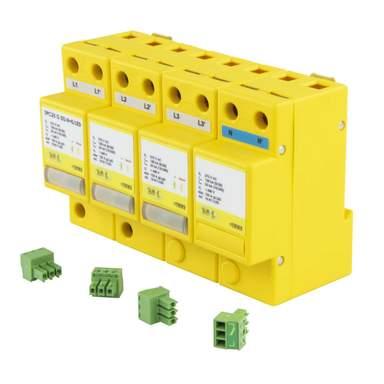

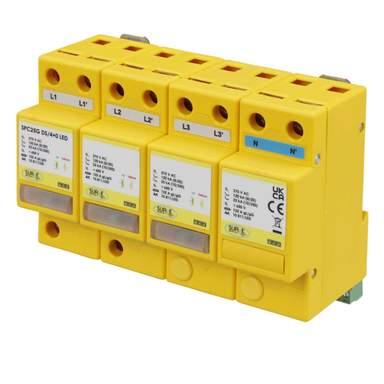

100kA 4 Module 3 Pole and Neutral Type 1+2+3 Surge Protector

Part Code: 10811LED

  • Suitable for TN-C-S & TN-S systems
  • End of module life indication
  • Remote signal contacts
  • Let through voltage ≤700V
  • Response Time - t<Subscript>A </Subscript>≤25ns
  • Mounted: DIN rail
  • Use 63A backup MCB [sold separately]
  • Suitable for use with any brand of consumer unit/distribution board
  • Cable size: 16mm² to 25mm²
  • Conforms to EN 62305, EN 61643-11 & BS7671
