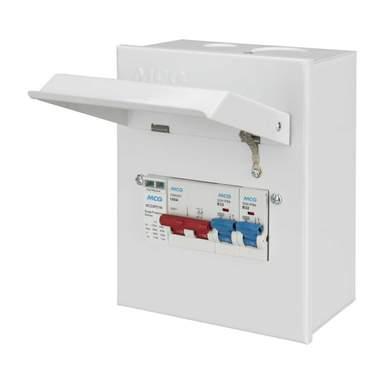

MCG EV EV Metal Clad Distribution Board with 2 x 32A B Curve MCBs and Type 2 SPD

Part Code: EVR

  • Circuit protection for electric vehicle chargers

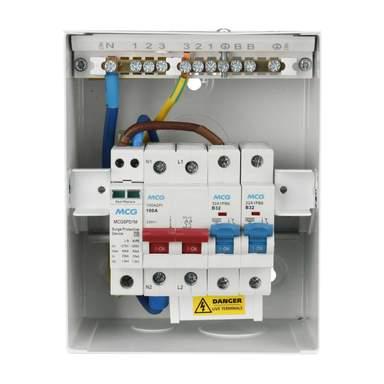

  • Supplied complete with fully fitted and pre-wired, 1 x 2 pole 100A incoming Isolator, 1 x Type 2 SPD and 2 x 32A 6kA MCB’s
  • Ferruled cable ends for secure connections
  • Fully enclosed metal construction body with drop-down metal cover
  • Raised keyholes for secure easy installation
  • Multiple circular cable entry knockouts top and bottom [M25, M32 and M40] plus rear aperture/rounded cable entries
  • Finished in white polyester powder coating to RAL9010
  • Retained screws
  • BS EN 61439-3 compliant
  • IP20 protection
