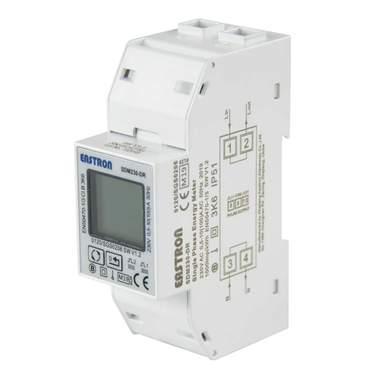

MCG 100A Single Phase 2 Mod kWh MID Meter

Part Code: D1P100A/2M

  • This meter has been tested and certified for single phase networks and import and export active energy [kWh], using the latest microprocessor and technology with a blue backlit display
  • This meter provides two pulsed outputs, both pulsed outputs are passive type [the first output is configurable]
  • The pulsed output can be set to read total / import / export / kWh/ kVarh
  • The pulse constant can be set to generate 1 pulse per: 0.001 [default] / 0.01 / 1kWh/kVarh
  • The second pulse output in non configurable, it is fixed to read kWh
  • The Rate can be set to generate 1 pulse per: 0.001 = 1 Wh/Varh / 0.01 = 10 Wh/Varh / 0.1 = 100 Wh/Varh
