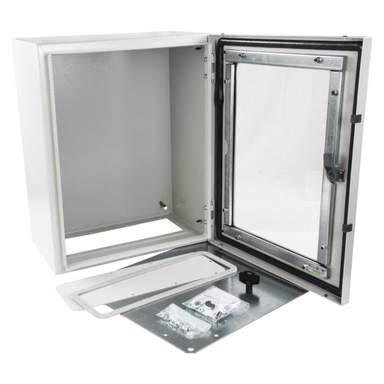

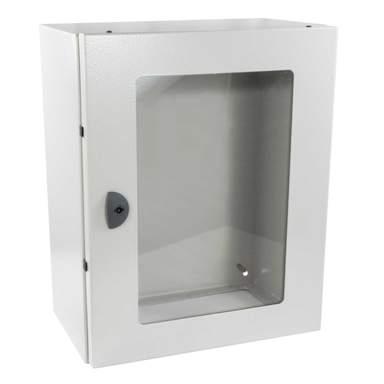

MCG 500mm x 400mm x 250mm Sheet Steel Enclosure with Plexi Door IP66 Grey

Part Code: STP4525

  • Enclosure manufactured from 1.5mm thick sheet steel
  • Reversible door provided with 4.0mm transparent plexiglas sheet and manufactured from sheet steel
  • Epoxy polyester powder coating
  • Colour RAL 7035 textured finish
  • IP66 complying with IEC/EN 62208, EN 62262
  • NEMA 12 complying with UL508A, UL50
  • Protection degree guaranteed by the two component polyurethane foam seal
  • Impact resistance IK10 complying with IEC/EN 62208, EN 62262
  • Door provided with locking system with Ø3mm double bar key and 2 zincpassivated rails to be fixed
  • Mounting plate manufactured from 2.5mm thick sendzimir sheet steel
  • Cable entry plate with sealing gasket
  • Screws for earth connection and mounting accessories
