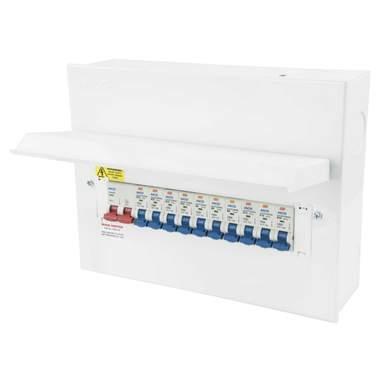

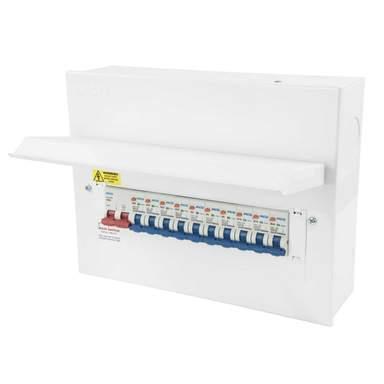

MCG 12 Way 100A Isolator Incomer Metal Clad Consumer Unit with 10 x RCBOs

Part Code: MMSB1210RCBO

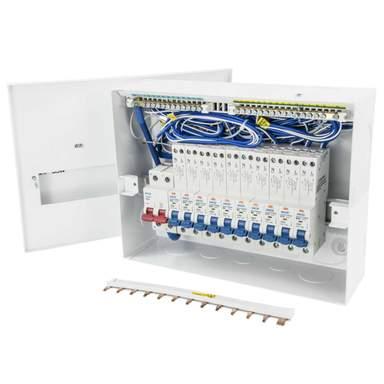

  • Supplied complete with fully fitted and pre-wired 2 pole 100A incoming isolator and 10 x RCBOs: 3 x 6A RCBOs Type B, 2 x 16A RCBOs Type B, 4 x 32A RCBOs Type B and 1 x 40A RCBO Type B
  • Ferruled cable ends for secure connections

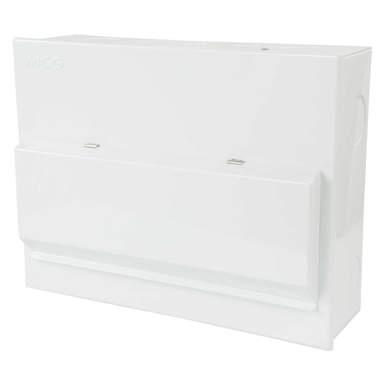

  • Fully enclosed metal construction body with drop-down metal cover
  • Raised keyholes for secure easy installation
  • Multiple circular cable entry knockouts top, bottom and sides (M25, M32 and M40) plus rear aperture/rounded cable entries
  • Finished in white polyester powder coating to RAL9010
  • Retained screws
  • BS 7671 Amendment 3:2015 and BS EN 61439-3 compliant
  • IP20 protection
