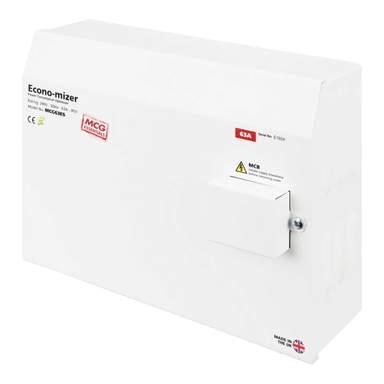

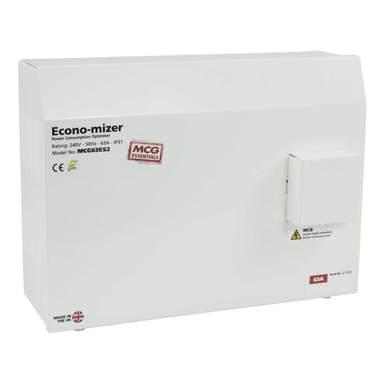

MCG 63A Single Phase Single Tap Voltage Optimisation Unit
Part Code: MCG63ES2
- Cable Entry2 x 32mm - Bottom
- ComplianceUKCA, CE
- Continuous Current Rating63A
- Current Rating63A
- Depth100mm
- Dimensions(H)230 mm x (W)310 mm x (D)100 mm
- Frequency50 Hz
- Guarantee5 Years
- Height230mm
- Humidity80% (non-condensing)
- Incoming Device100A 2 Pole Isolator
- Input Voltage Range216 - 253V
- Ip RatingIP31
- MaterialMild Steel
- MountingSurface
- Number Of Phases1
- Operating Temperature Range-5 - 40°C
- Optimum Output Voltage-7.5% (18V)
- Packaging TypesEach
- Product RangeEcono-mizer
- Supplied With1 x 63A Type C Single Pole MCB (6kA) and 1 x 100A 2 Pole Isolator
- Torque Settings2 - 3.5 Nm
- Weight10.00000kg
- Width310mm
- Winding TypeToroidal
