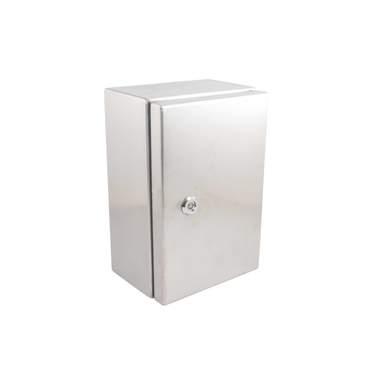

MCG 300mmx200mmx150mm Stainless Steel Enclosure IP66

Part Code: 32150E/S

  • Enclosure and door with formed corners manufactured from 1.5mm thick pre-satinised AISI 304L stainless sheet steel
  • IP66 complying with IEC/EN 62208; EN 62262
  • NEMA 4X complying with UL508A; UL50
  • Protection degree guaranteed by the two component silicone foam seal
  • Impact resistance IK10 complying with IEC/EN 62208; EN 62262
  • Door with locking system (box and insert in zinc alloy, lever in stainless steel) with Ø3mm double bar key
  • Flat mounting plate manufactured from 2.5mm thick sendzimir sheet steel with slots in the corner
  • Hinges in stainless steel
  • Screws for earth connection
