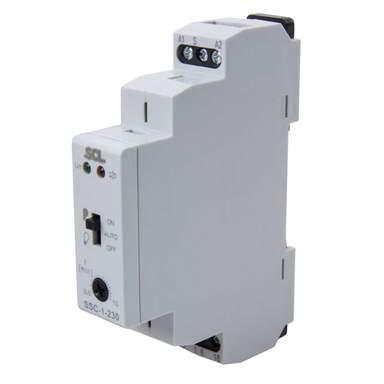

Finder Staircase Lighting Time Switch 0.5 to 10 Minutes

Part Code: ER116TE

  • Used for delayed switching of lights in the corridors, entrances, stairways, halls or for delayed finish of fans (WC, bathroom, etc...)
  • It is controlled by a button or by several buttons from more places (connected in parallel), buttons can be equipped by glow lamps (max 20 pcs of glow lamps)
  • Output relay contact 16A/AC1 with surge current up to 80A enables switching of EL lamps and fluorescent lamps
  • Operating system switch: AUTO/OFF/ON
  • Time range: 0.5 - 10 min
  • Time setting by potentiometer
  • Supply voltage 230V AC
  • Protection against button blocking
  • One module, DIN rail mounting
